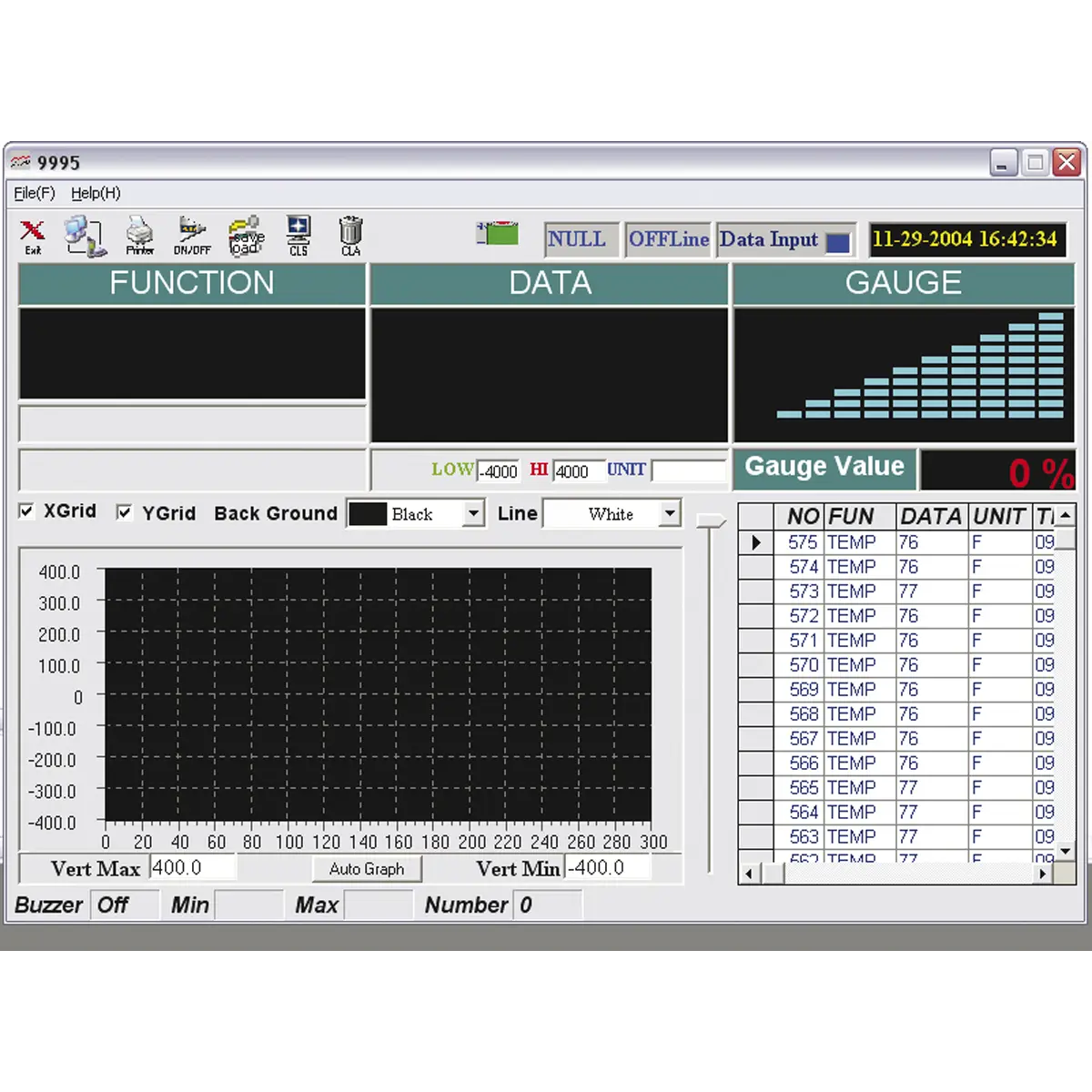

15-Function Digital Automotive Multimeter with Bar Graph/PC Link
15-Function Digital Automotive Multimeter with Bar Graph/PC Link £194.35£161.96 Inc VATExc VAT
Back to products

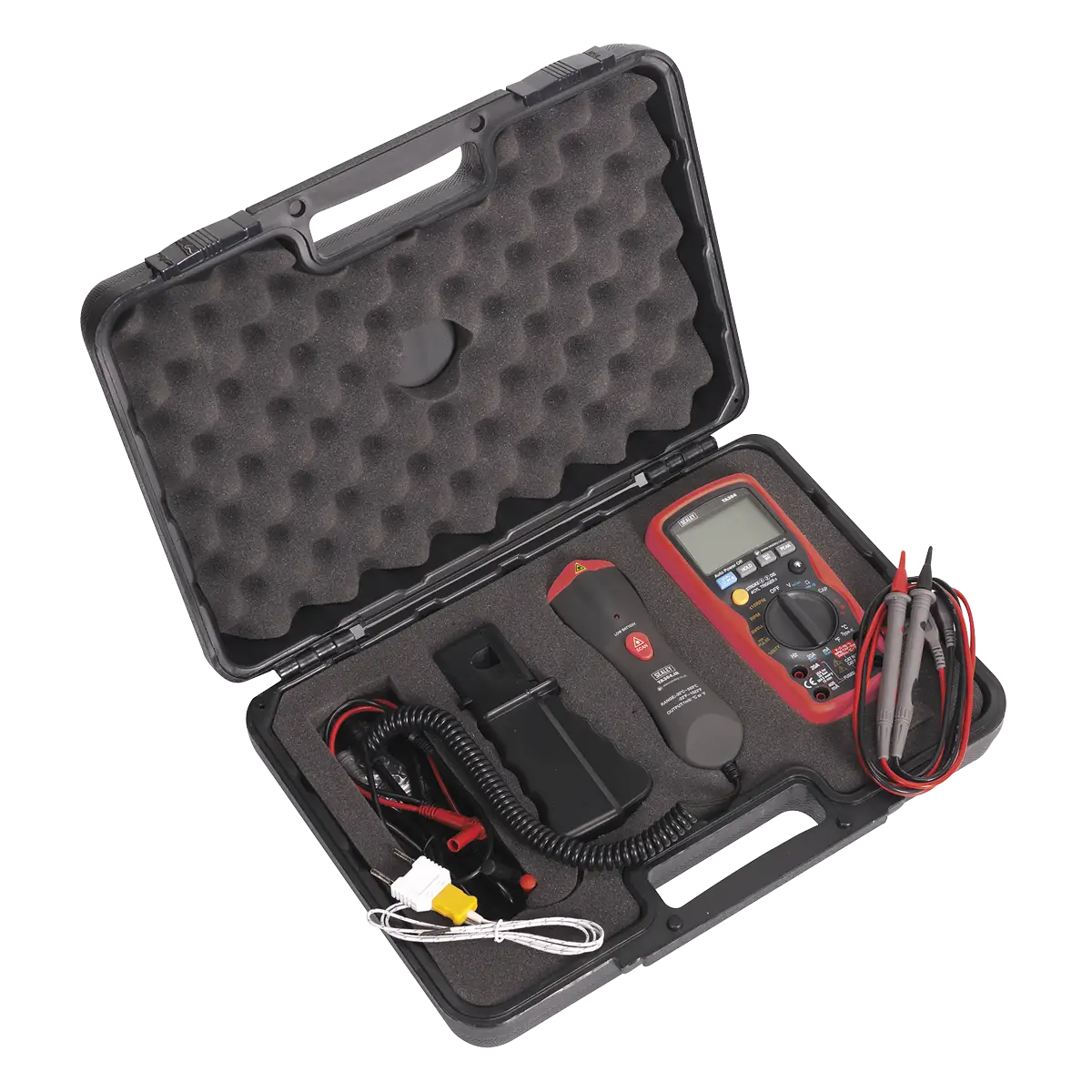

15-Function Digital Automotive Multimeter with Inductive Coupler/Infrared Temperature Probe
15-Function Digital Automotive Multimeter with Inductive Coupler/Infrared Temperature Probe £269.95£224.96 Inc VATExc VAT
12-Function Digital Automotive Multimeter with Inductive Coupler - Image 1
Click to enlarge

12-Function Digital Automotive Multimeter with Inductive Coupler

12-Function, auto-ranging automotive diagnostic multimeter. Combination digital/bar graph display gives accurate indication of component outputs. Large, easy-to-read high contrast display with bright, white back light. Workshop-tough, durable case with integral stand. Reads standard automotive parameters including duty cycle. Features auto-ranging and data-hold functions with overload protection on all ranges. Supplied with inductive coupler, test probes and thermocouple.

SKU: TA302 Categories: , ,
MSRP £119.94
Sealey

£107.95£89.96 Inc VATExc VAT

Exc Vat

Inc Vat

In stock

Fast Shipping

20k+ products

Telephone Support

2-3 day Delivery

• 12-Function, auto-ranging automotive diagnostic multimeter.
• Combination digital/bar graph display gives accurate indication of component outputs.
• Large, easy-to-read high contrast display with bright, white back light.
• Workshop-tough, durable case with integral stand.
• Reads standard automotive parameters including duty cycle.
• Features auto-ranging and data-hold functions with overload protection on all ranges.
• Supplied with inductive coupler, test probes and thermocouple.

• 12-Function, auto-ranging automotive diagnostic multimeter.
• Combination digital/bar graph display gives accurate indication of component outputs.
• Large, easy-to-read high contrast display with bright, white back light.
• Workshop-tough, durable case with integral stand.
• Reads standard automotive parameters including duty cycle.
• Features auto-ranging and data-hold functions with overload protection on all ranges.
• Supplied with inductive coupler, test probes and thermocouple.
• Model No. TA302

  • AC Current: 320µA, 3200µA, 32mA, 320mA, 10A (Auto-Ranging)
  • AC Voltage: 3.2V, 32V, 320V, 600V (Auto-Ranging)
  • Auto-Ranging: Yes
  • Back Light: Yes
  • Bar Graph Display: Yes
  • Batteries (supplied): 9V (PP3)
  • Capacitance: No
  • Continuity: <35Ω Continuity Buzzer 2kHz
  • DC Current: 320µA, 3200µA, 32mA, 320mA, 10A (Auto-Ranging)
  • DC Voltage: 320mV, 3.2V, 32V, 320V, 600V (Auto-Ranging)
  • Digits Height: 18mm
  • Diode Check: Yes
  • Display Hold: Yes
  • Duty Cycle: 0.1-99.9%
  • Dwell: 4Cyl 0-90°, 5Cyl 0-72°, 6Cyl 0-60°, 8Cyl 0-45°
  • Frequency: 320Hz, 3200Hz, 32kHz (Auto-Ranging)
  • Hi-Impact Case: Yes
  • IR Temperature: No
  • Inductive Coupler: Yes
  • Low Battery Indicator: Yes
  • Nett Weight: 366g
  • PC Interface: No
  • Pulse Width: No
  • Resistance: 320Ω, 3.2kΩ, 32kΩ, 320kΩ, 3.2MΩ, 32MΩ (Auto-Ranging)
  • Size (L x W x D): 167 x 79 x 50mm
  • Tach (rpm): 4-8cyl, 2 & 4-Stroke 600-4000 (x1)rpm, 600-12000 (x10)rpm
  • Temperature: -20 to +760°C, -4 to +1400°F
  • Transistor Test: No
  • Weight: 366g
